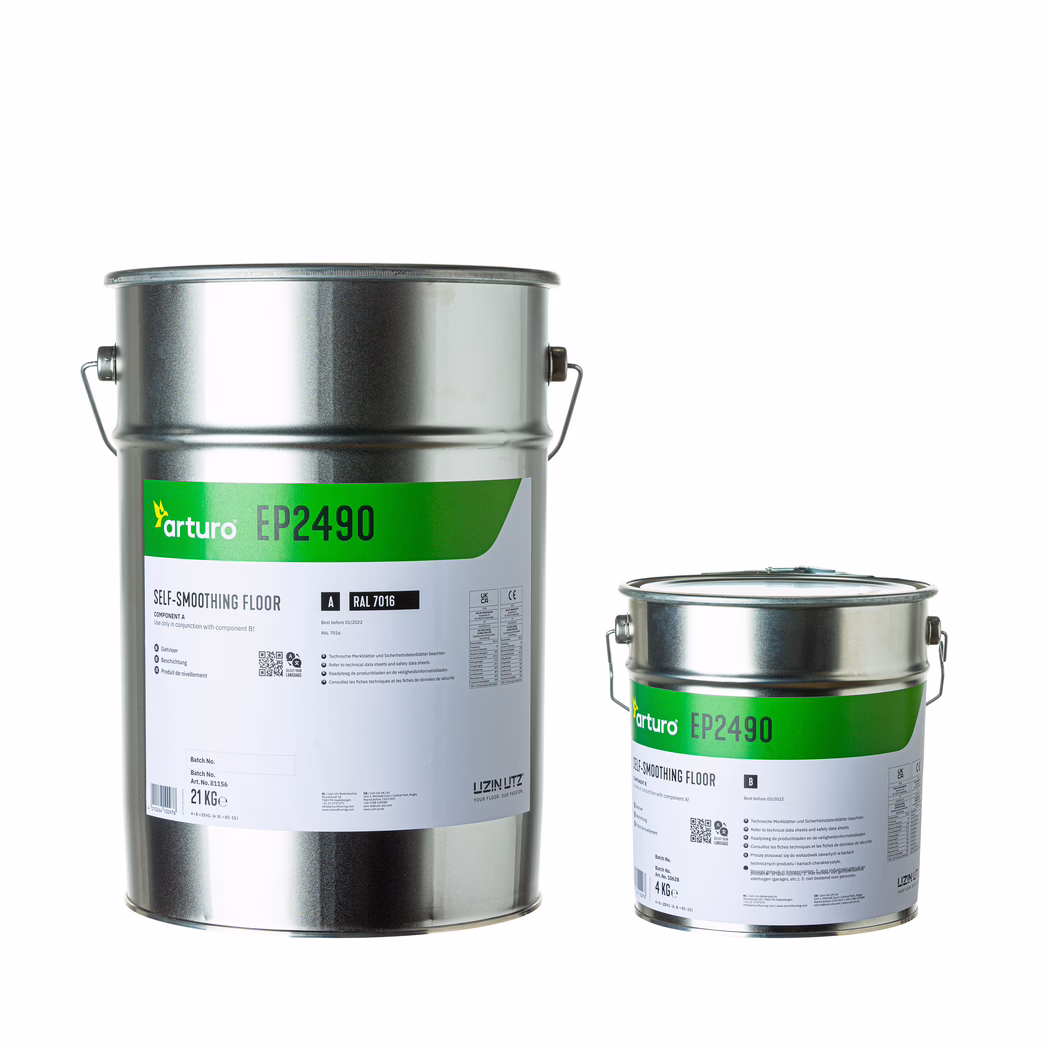

Arturo EP2490
Electrical conducting self-smoothing floor for ESD protection areas and cleanrooms (2-C, EP)
Applications
It is suitable on ESD-protection-zones, where a small electrostatic charge and a conductive surface are required. Arturo EP2490 is especially suitable as a finish on floors that are exposed to light and medium loads on mineral subsoils, for example for:
- Rooms with sensible electronics
- Semiconductors and electronics industry
- Microbiology and chemistry
- Pharmacy
- Production rooms for electric parts
Properties
- Electrically conducting
- Component protection
- Correspond ESD requirements according to DIN EN 61340-5-1
- Resistant to impacts, shocks and wear
- Impermeable to liquids
- Available in lots of colours
- Easy handling
- Self-smoothing
Downloads
Technical data
| Consumption | Approx. 1.50 kg/m²/mm. Max. 3.75 kg/m² |
|---|---|
| Mixing ratio | 85.0 part by weight comp. A |
| Full mechanical resilience | After 3 days* |
| Water and chemically resistant | After 7 days* |
| Layer thickness | Approx. 2.00 mm (max. 2,5 mm) |
| Solids content | 100% |
| Shore-D (7d/21°C/60% r.h.) | Approx. 80 |
| Tensile strength (7d/21°C/60% r.h.) | 19 MPa (N/mm²) |
| Compressive strength (7d/21°C/60% r.h.) | 58 MPa (N/mm²) |
Ordering information
| Article | Article number | Packsize |
|---|---|---|
| Arturo EP2490 10 kg | Multiple colours | Set: A + B = 10 kg: A = 8.50 kg, B = 1.50 kg |
| Arturo EP2490 25 kg | Multiple colours | Set: A + B = 25 kg: A = 21.25 kg, B = 3.75 kg |
| Arturo EP2490 A 21,25kg | Multiple colours | Set: A + B = 25 kg: A = 21.25 kg, B = 3.75 kg |
| Arturo EP2490 A 8,50kg | Multiple colours | Set: A + B = 10 kg: A = 8.50 kg, B = 1.50 kg |
| Arturo EP2490 B 1,50kg | 74100 | Set: A + B = 10 kg: A = 8.50 kg, B = 1.50 kg |
| Arturo EP2490 B 3,75kg | 74093 | Set: A + B = 25 kg: A = 21.25 kg, B = 3.75 kg |
